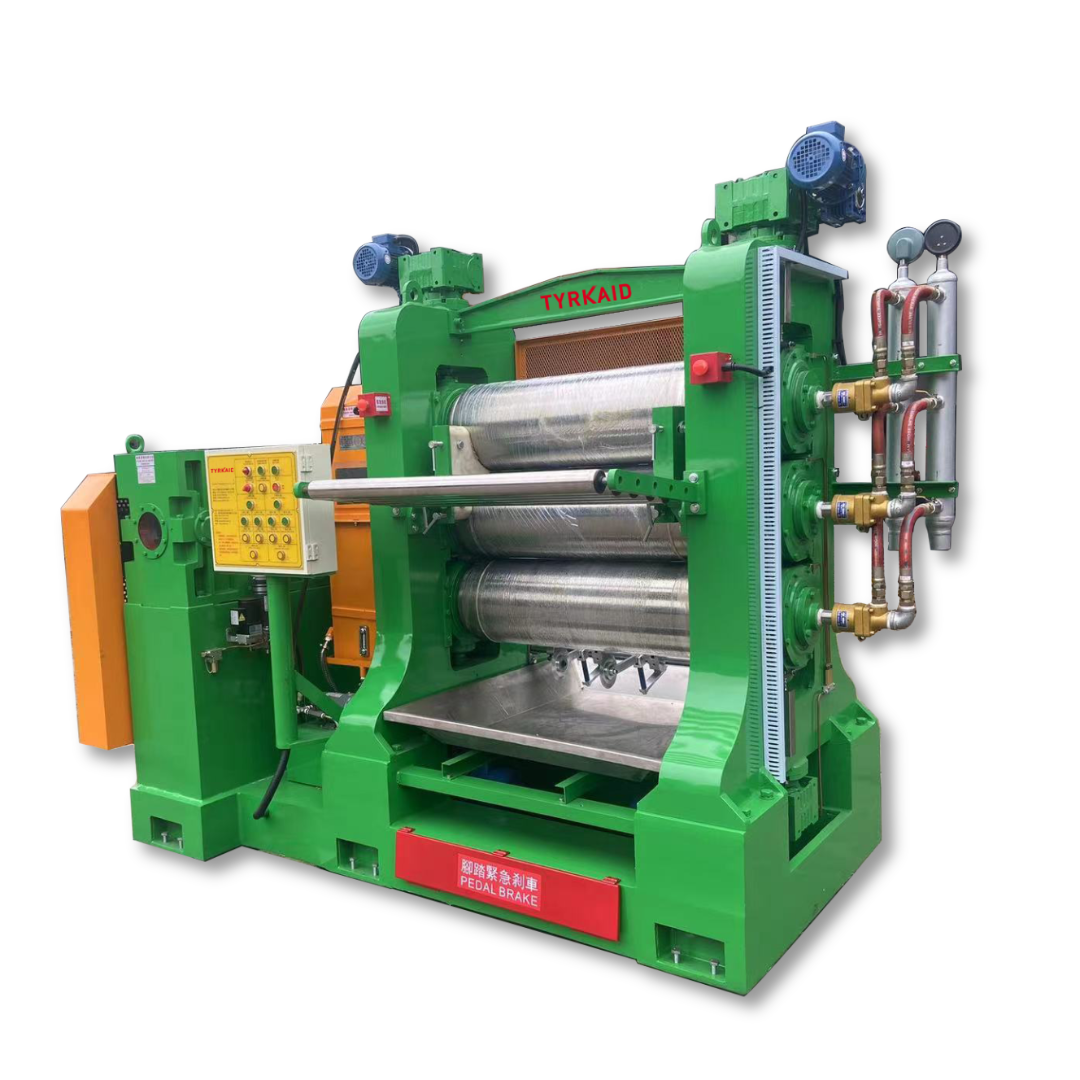

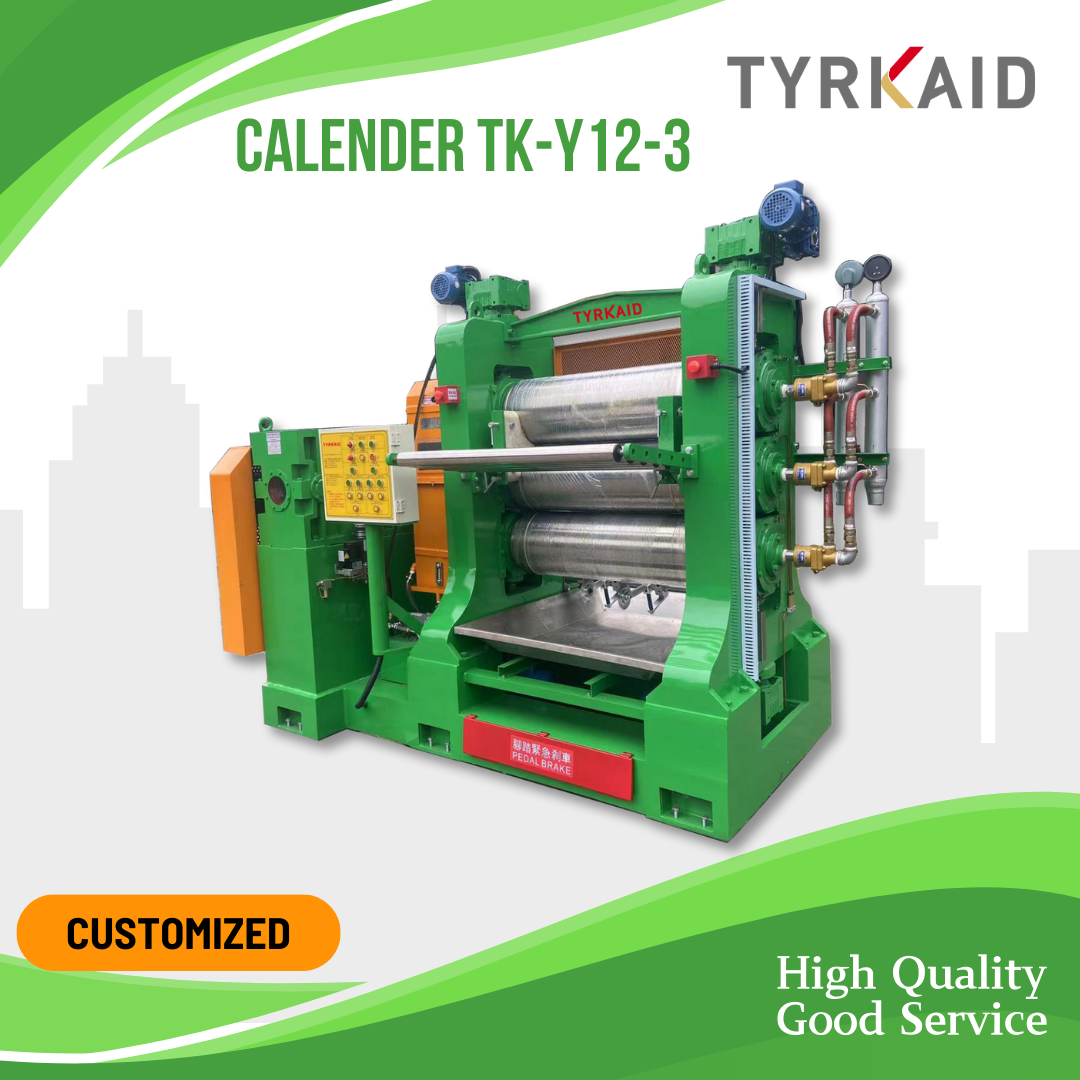

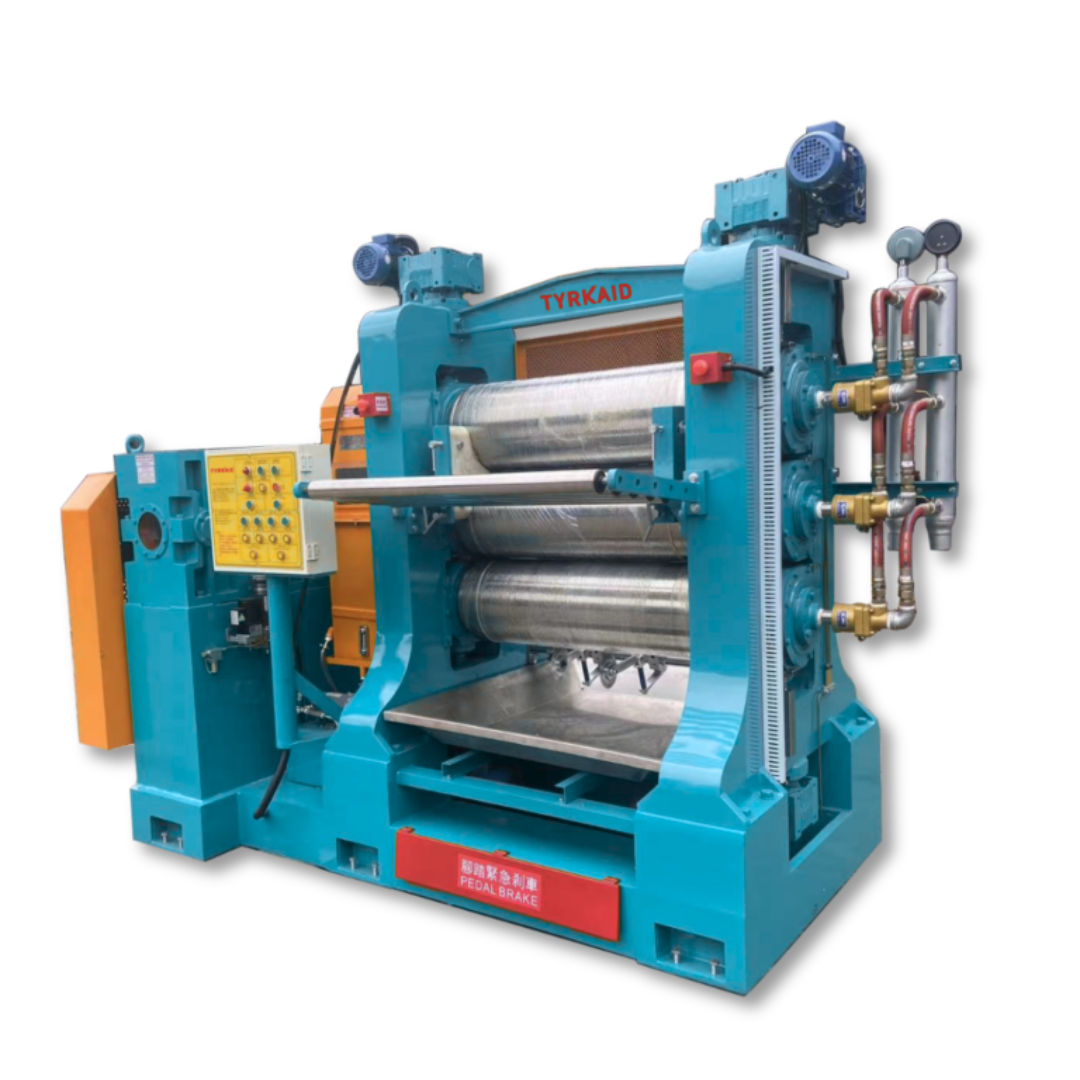

Rubber Calender （2/3/4 Rolls Optional)

Scope of Application:

This machine is utilized in the shaping and processing of rubber materials, including applications like tire manufacturing, belt production, and fiber coating, as well as the fabrication of plastic materials encompassing films, sheets, synthetic leather, flooring, and more.

Category: Tag:

Technical Parameters

Model Motor Power Roll Size (Diameter) Adjustment Method Adjustment Range Speed Range Weight Length*Width*Height

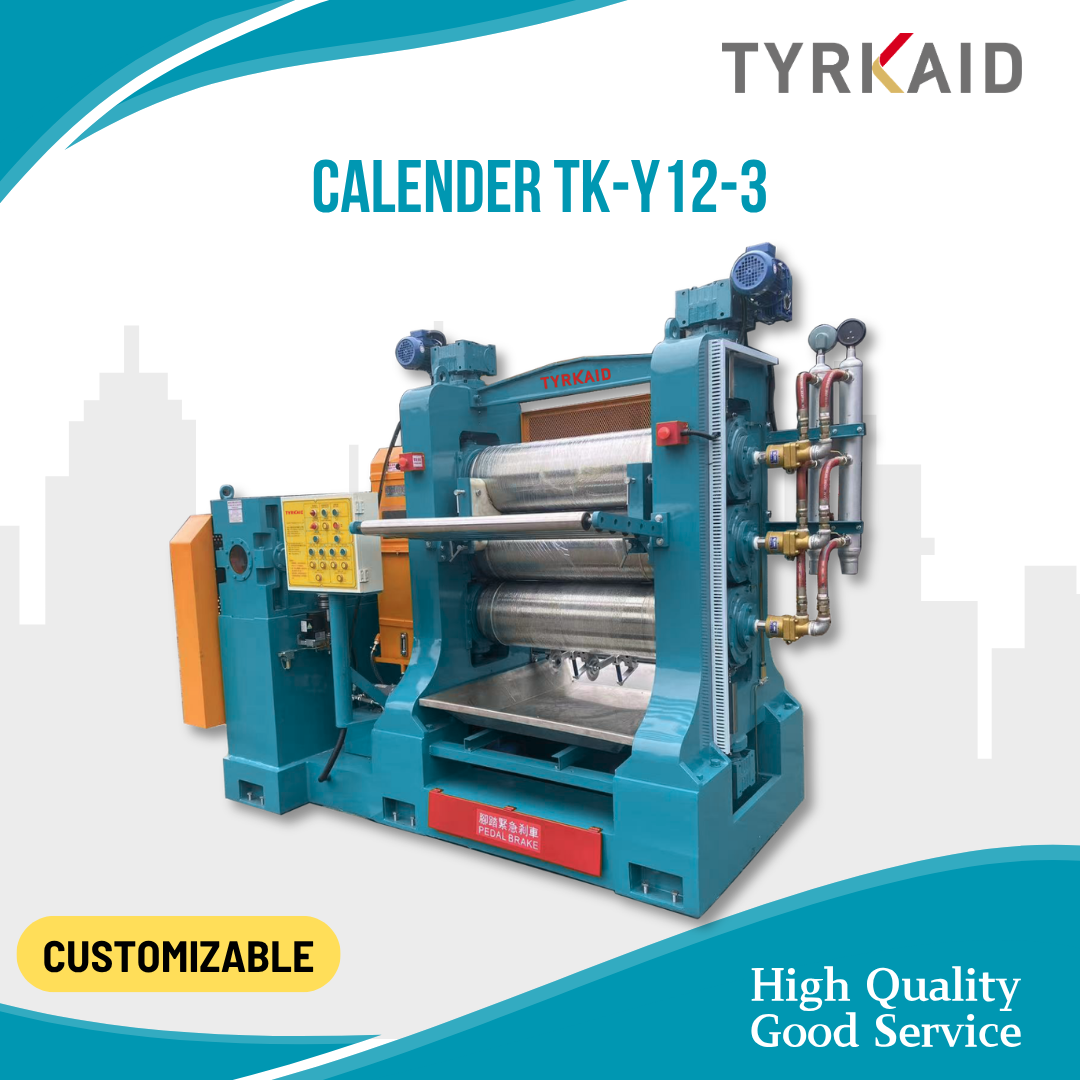

TK-Y12-3 40KW ¢305XL900mm Electric 0.3-8mm 1-22r/min 6500 3500*1750*2200(mm)
TK-Y12-4 40KW ¢305XL900mm Electric 0.3-8mm 1-22r/min 7200 3500*2000*2200(mm)
TK-Y14-3 50KW ¢356XL900mm Electric 0.3-8mm 1-22r/min 9000 4000*1900*2500(mm)
TK-Y14-4 60KW ¢356XL900mm Electric 0.3-8mm 1-22r/min 9800 4000*2100*2500(mm)
