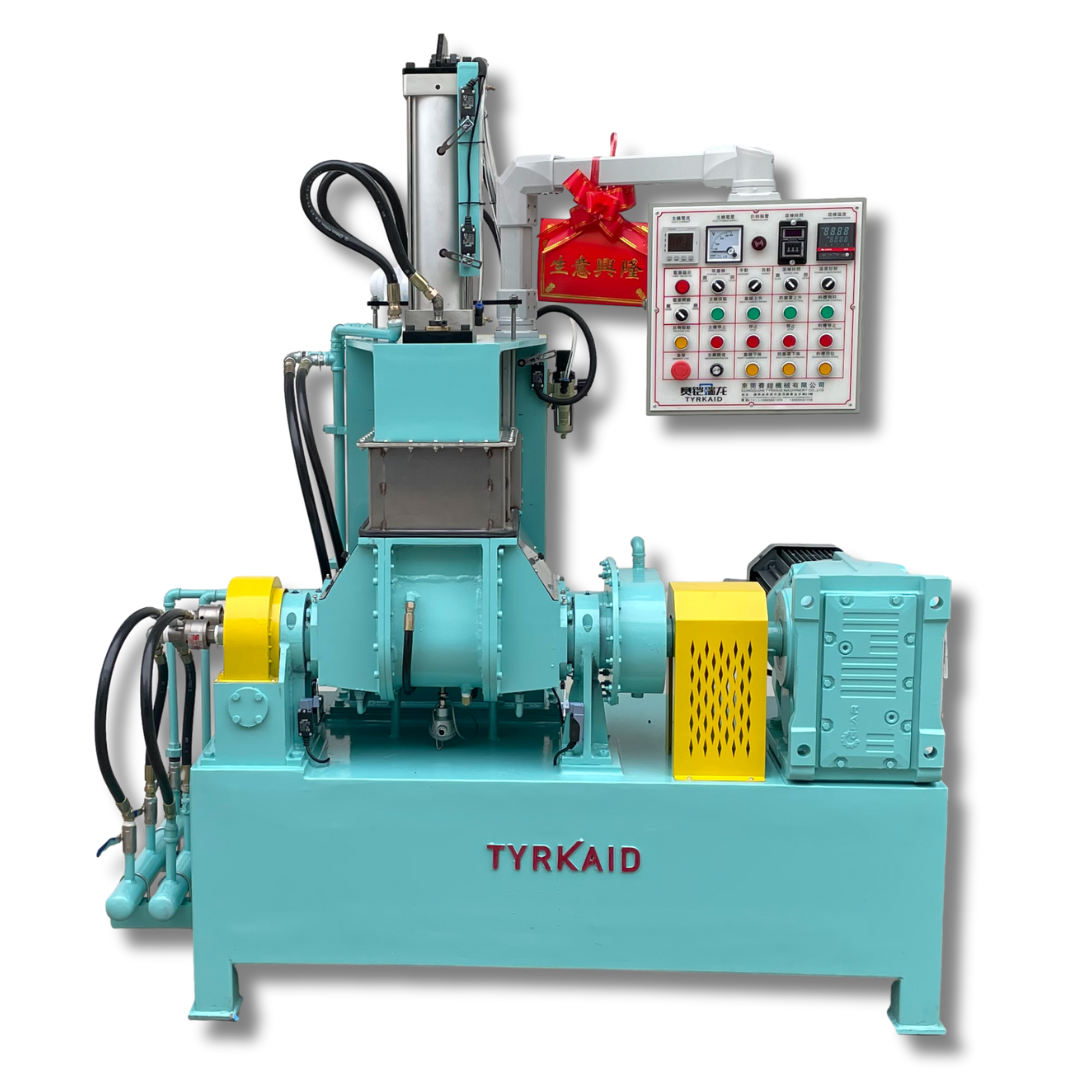

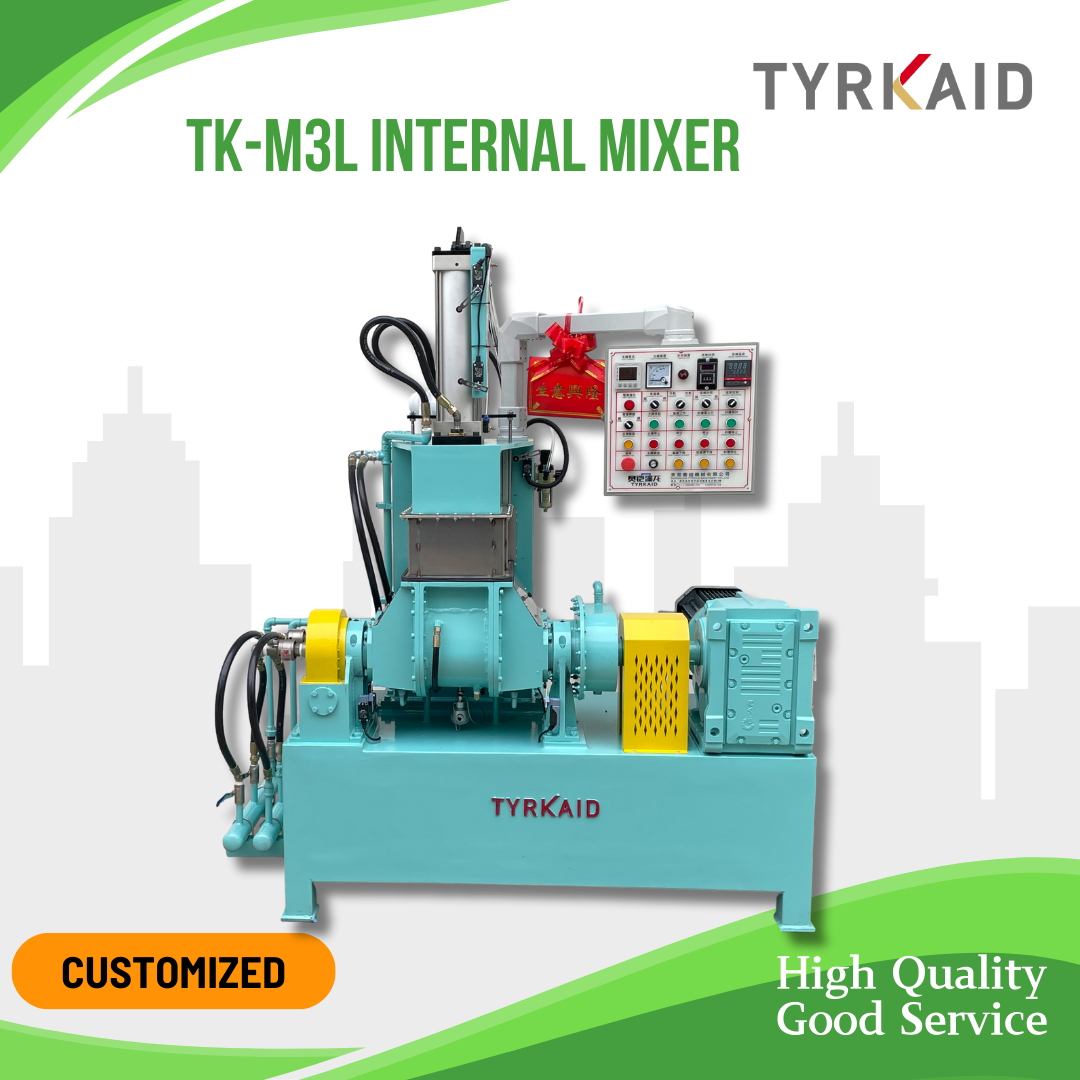

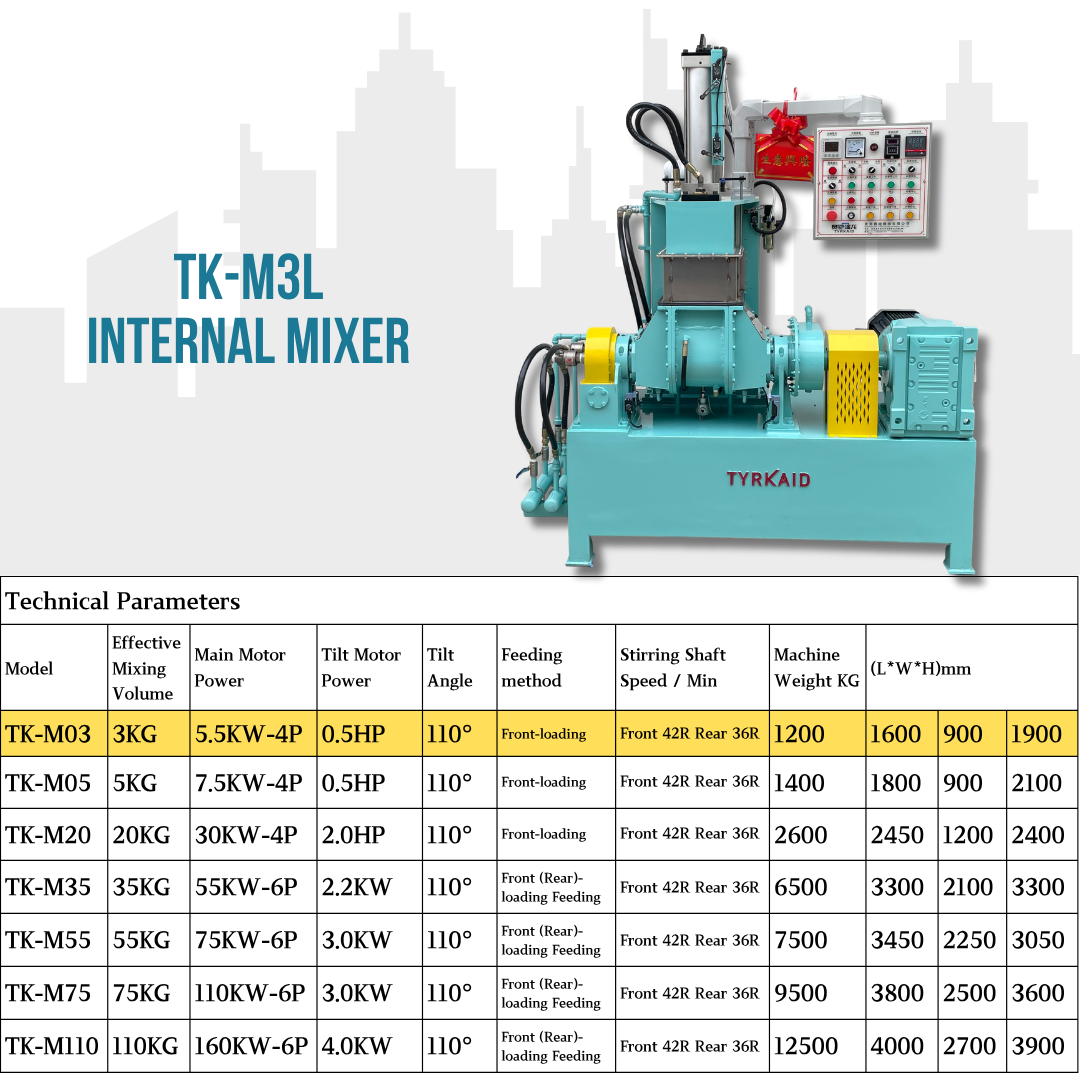

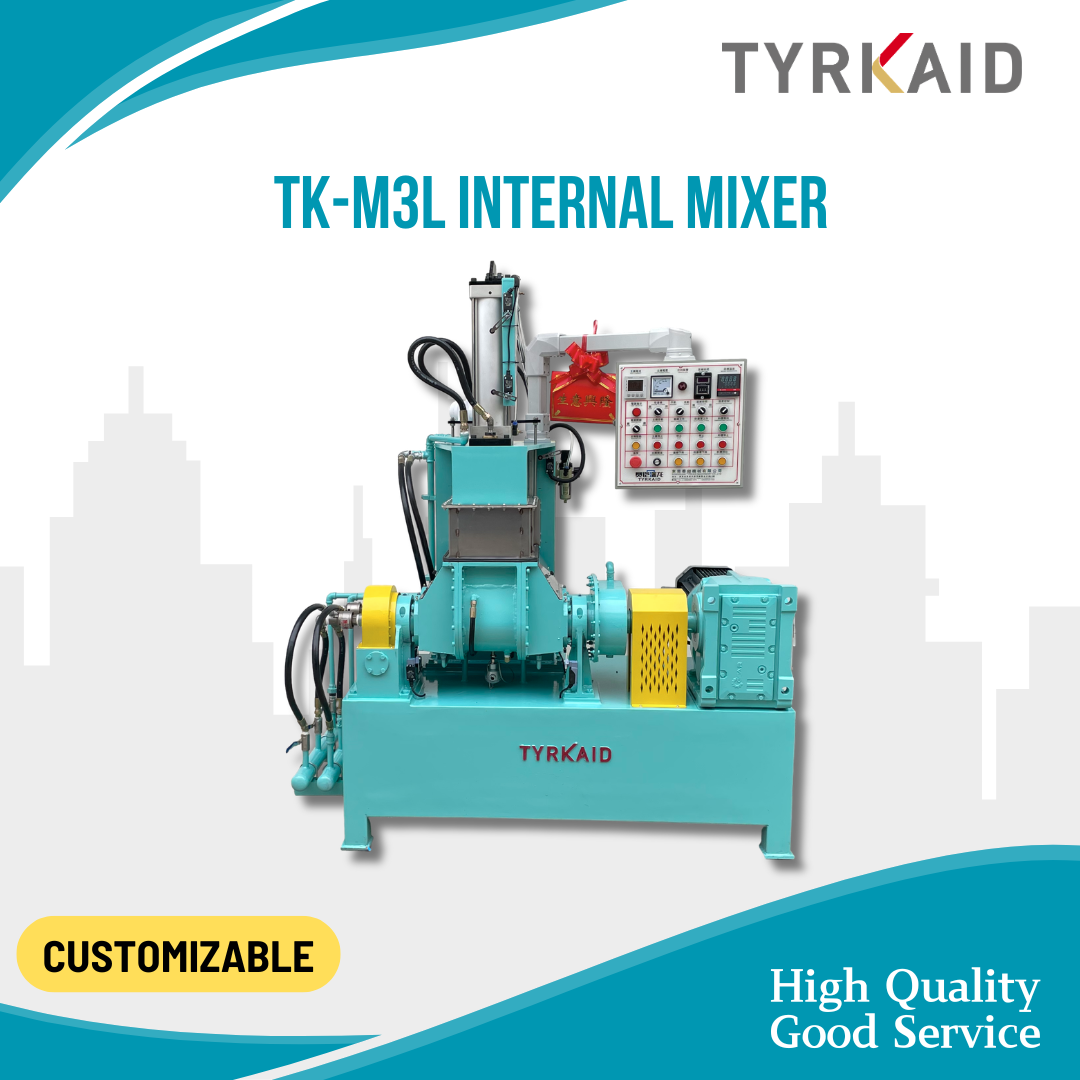

Internal Mixer

    Scope of Application:

    It is suitable for the mixing, kneading, and dispersing of various chemical materials such as EVA, rubber, synthetic rubber, and hot melt adhesives. By controlling the temperature to reach the melting point, the agitation of the mixing blades causes the material molecules dissolved and blended together.

    Category: Tag:

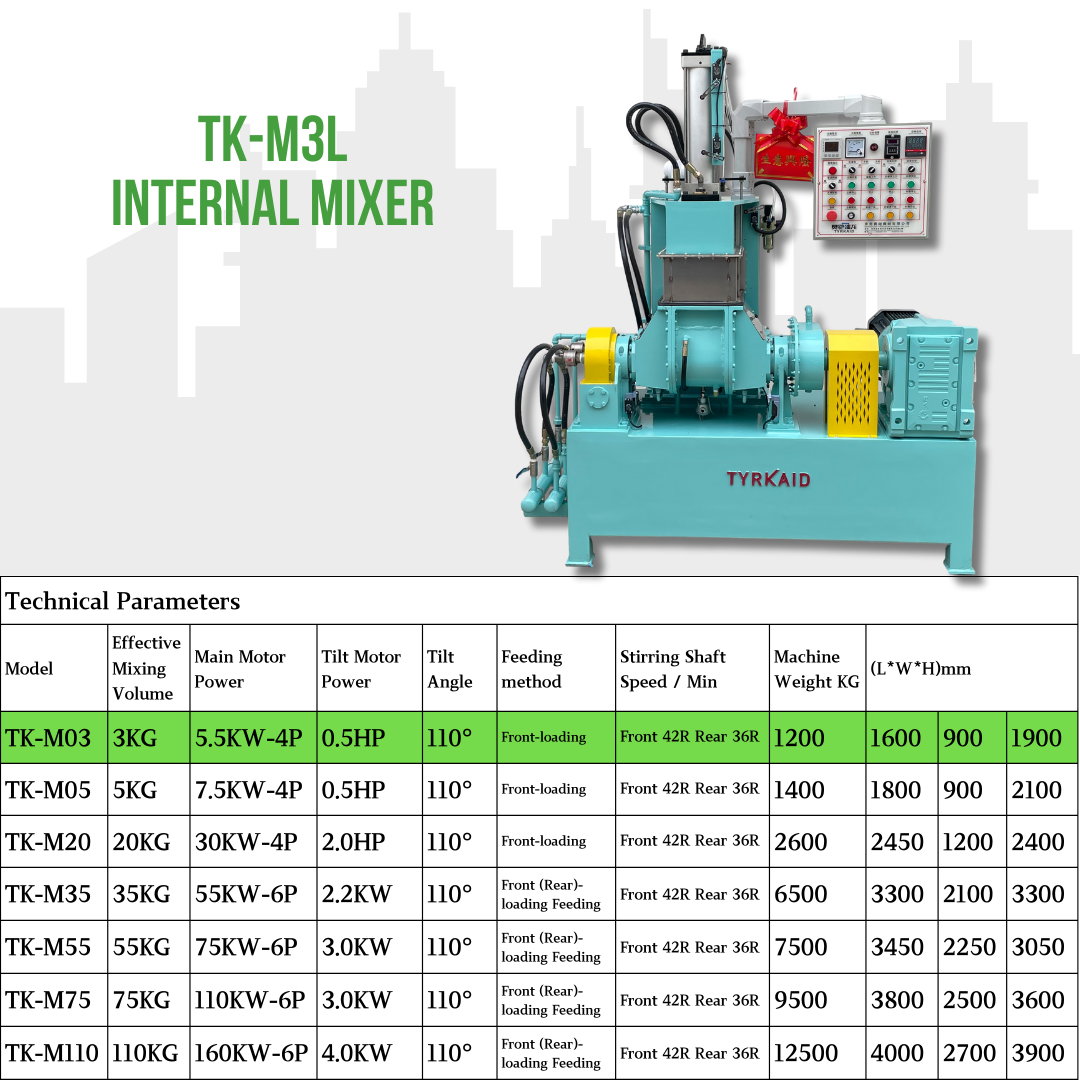

      Technical Parameters

      Model Effective Mixing Volume  Main Motor Power Tilt Motor Power Tilt Angle Feeding method Stirring Shaft Speed / Min Machine Weight KG (L*W*H) mm
      TK-M03 3KG 5.5KW 0.5KW 110° Front-loading Feeding Front 42R Rear 36R 1200 1600 900 1900
      TK-M05 5KG 7.5KW 0.5KW 110° Front-loading Feeding Front 42R Rear 36R 1400 1800 900 2100
      TK-M20 20KG 30KW 2KW 110° Front-loading Feeding Front 42R Rear 36R 2600 2450 1200 2400
      TK-M35 35KG 55KW 2.2KW 110° Front (Rear)-loading Feeding Front 33R Rear 26R 6500 3300 2100 3300
      TK-M55 55KG 75KW 3KW 110° Front (Rear)-loading Feeding Front 33R Rear 26R 7500 3450 2250 3050
      TK-M75 75KG 110KW 3KW 110° Front (Rear)-loading Feeding Front 33R Rear 26R 9500 3800 2500 3600
      TK-M110 110KG 160KW 4KW 110° Front (Rear)-loading Feeding Front 33R Rear 26R 12500 4000 2700 3900
